HS-NEW-C-3" & 3.5" Hard Surface Floor Socket (Concrete, Tile, Carpet, Etc..)

SKU:: HARD-SURF-FLOOR-SOCK-NEW
UPC:

$196.00

$182.00

(You save $14.00 )

Current Stock:

Quantity:

Adding to cart… The item has been added

Description

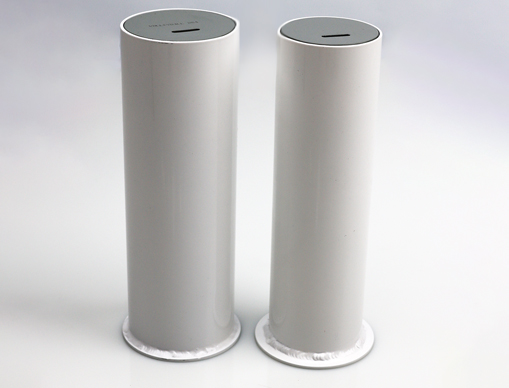

Designed for new construction where you wish to pour concrete right up next to the edge of the sleeve. Our sleeve cap fits flush inside the sleeve for a completely flush installation.
Powder coated seamless aluminum construction with welded base ring to lock sleeve firmly into concrete
For use on all non-floating floor systems, including concrete, tile, carpet or synthetic materials
Includes aluminum powder coated cap
Requires excavation of existing floors
Socket is approx. 12" deep
Requires two per system
Sleeves are stocked in two sizes to accomodate 3-1/2" poles or 3" poles. (Also available for other sizes, call 1-800-494-3933 for pricing and availability)
Note: Floors with basements or hollow cavities below require additional re-inforcement. Please call us for site specific install help.
Detailed installation instructions provided at no cost.
Sold Indivudually

Installation Instructions

What sets the VBUSA Hard Surface Floor Socket Apart?

FLUSH TO THE FLOOR

The recessed inner edge of the hard surface sleeve allows the cap to fit seamlessly into the sleeve, ensuring that the finished installation is flush with the floor height.

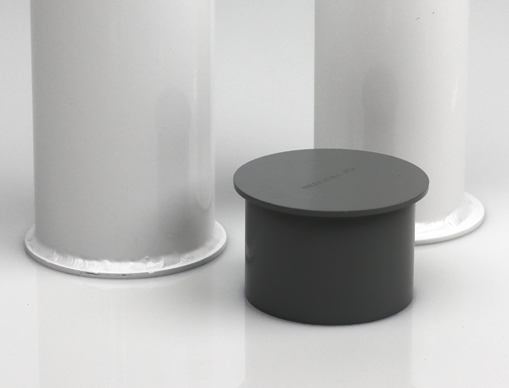

WELDED PLATE INCLUDED

The welded plate at the bottom of the sleeve serves two purposes: preventing grout from getting into the sleeve during installation and providing stability when embedded in non-shrink grout.

A 6-inch cord drill is recommended for installation due to the 4.5-inch width of the welded plate.

HIGH QUALITY

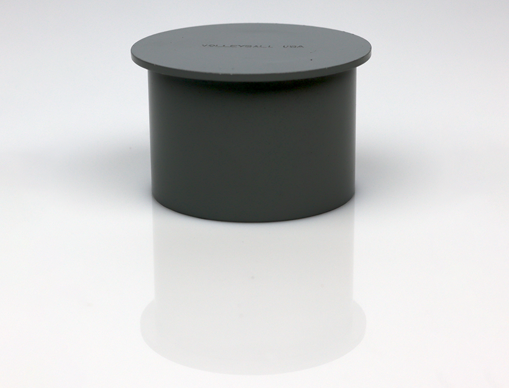

The heavy-duty aluminum and powder-coated gray sleeves caps are designed to provide stability and prevent bouncing during events, even if the court is used for basketball.

With a three-inch length, they securely fit inside the sleeve, ensuring a secure fit and minimizing any concerns regarding movement or displacement
